Sectional Round Zinc-alu Reservoirs

Practical liquid storage with flexibility for different project requirements.

Sectional round reservoir

CORE PRODUCT

Designed around practical storage needs.

Sectional reservoir construction allows reservoirs to be manufactured and assembled from individual sections, providing flexibility where transportation, access and installation requirements need to be considered.

  • Various water-storage capacities
  • Different reservoir dimensions
  • Project-specific requirements
  • Commercial and industrial applications
  • Agricultural and institutional applications
  • liquid storage and liquid management projects
  • Food manufacturing applications

PRODUCT GALLERY

Reservoir examples.

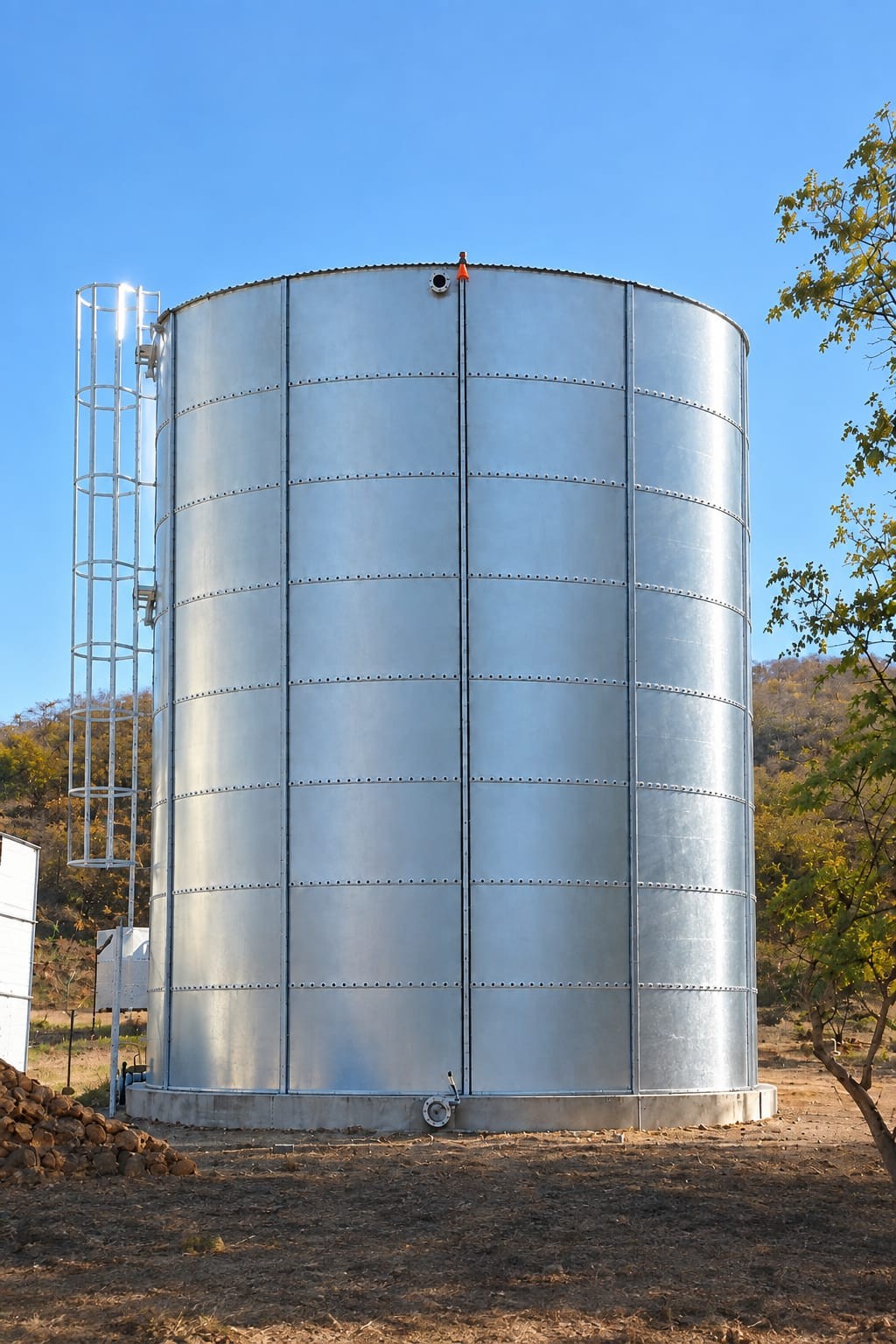

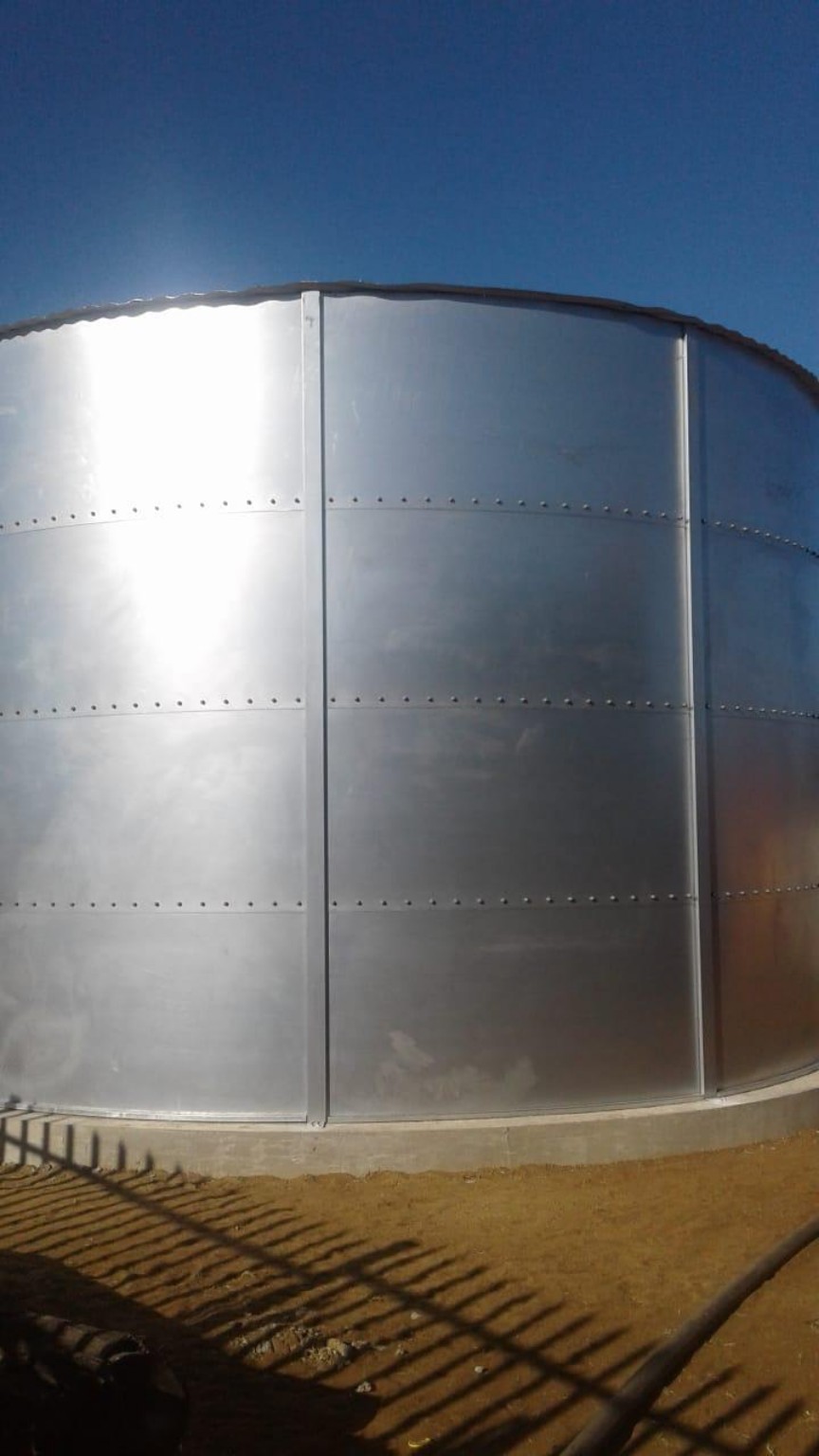

Sectional reservoirSectional reservoir

RESERVOIR SIZING

Size chart

The chart below shows the available diameter and height combinations with the corresponding storage volume in kilolitres.

Diameter, height and storage volume table

Volume is shown in kilolitres (kL). On smaller screens, swipe horizontally to view the full table.

Reservoir volume in kilolitres by diameter and height
Height (m) / Diameter (m) 5.376.728.059.4010.7512.0913.4314.7816.1217.1618.8120.1521.4924.18
2.04————234289350416489567650740835937
3.06——212278351434525624733850976111012531405
4.08—20828337046857870083397711351301148016711873
5.10—2603544635857238751041122114171626185020892342
6.1221731242555570386710491249146617001951222025062810
7.14253364496648820101212141457171019832277259029243278
8.16289416567740937115613991665195422572602296033423747
9.18208325468637833105413011574187321992550292733303760
10.20231361520708925117114451749208224432833325237004183
